Bronze Fusible Plugs Manufacturer
We are Manufacturer, Supplier, Exporter of Bronze Fusible Plugs ( Boiler Mountings ) and our setup is situated in Ahmednagar, Maharashtra, India. Fusible Plug is a boiler mounting in Steam Boilers to enhance the safety during operation. It works as safety device , wherein the fusible alloy in the plug melts on reaching the specified temperature.
With the years of experience in international market and an in-depth understanding of the industry, we are capable to provide our customers with best possible solutions to meet their various requirements. Our international standards of packaging have facilitated us to create a niche for ourselves in the industry.
Apart from exporting products, we also outsource our products according to the requirements of our associates and clients. Committed to providing highest level of customer satisfaction, we are capable to deliver the orders within stipulated period of time to our client.
RUSHAS ENGINEERING become one of the most reliable source for quality products.

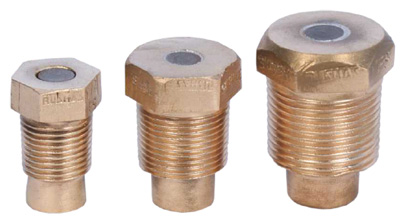

ONE PIECE - WATERSIDE / WET
| SPECIFICATIONS | |
| MATERIAL | BRONZE (AS PER IBR REG 282 (a) Gr. B) |
| END CONNECTIONS | SCREWED BSPT |
| MANUFACTURING STANDARD | AS PER IBR 1950 cl 331-334 |
| TESTING STANDARD | AS PER IBR 1950 cl 290 a |
| CERTIFICATION | IBR approved |
| SIZES | ½ inch -1 inch |
| TYPES | ||
| Size (inches) | Pressure (Kg/Cm 2) | Melting Temperature |
| 1 | 17.5 | 265°C |
| 1 | 10.5 | 240°C |
| 3/4 | 17.5 | 265°C |
| 3/4 | 10.5 | 240°C |
| 1/2 | 10.5 | 269°C |
| 1/2 | 17.5 | 292°C |

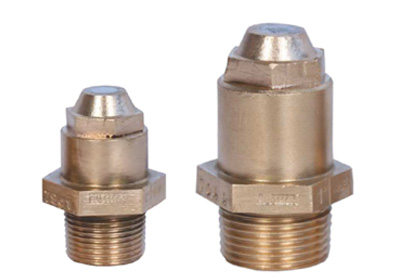

TWO PIECE WATERSIDE / WET
| SPECIFICATIONS | |
| MATERIAL | BRONZE (AS PER IBR REG 282 (a) Gr. B) |
| END CONNECTIONS | SCREWED BSPT |
| MANUFACTURING STANDARD | AS PER IBR 1950 cl 331-334 |
| TESTING STANDARD | AS PER IBR 1950 cl 290 a |
| CERTIFICATION | IBR approved |
| SIZES | 3/4 inch -1 inch |
| TYPES | ||
| Size (inches) | Pressure (Kg/Cm 2) | Melting Temperature |
| 1 | 17.5 | 265°C |
| 1 | 10.5 | 240°C |
| 3/4 | 17.5 | 265°C |
| 3/4 | 10.5 | 240°C |
ONE PIECE FIRESIDE / DRY
| SPECIFICATIONS | |
| MATERIAL | BRONZE (AS PER IBR REG 282 (a) Gr. B) |
| END CONNECTIONS | SCREWED BSPT |
| MANUFACTURING STANDARD | AS PER IBR 1950 cl 331-334 |
| TESTING STANDARD | AS PER IBR 1950 cl 290 a |
| CERTIFICATION | IBR approved |
| SIZES | 1/2 inch -1 inch |
| TYPES | ||
| Size (inches) | Pressure (Kg/Cm 2) | Melting Temperature |
| 1 | 17.5 | 265°C |
| 1 | 10.5 | 240°C |
| 3/4 | 17.5 | 265°C |
| 3/4 | 10.5 | 240°C |
| 1/2 | 10.5 | 269°C |
| 1/2 | 17.5 | 292°C |
